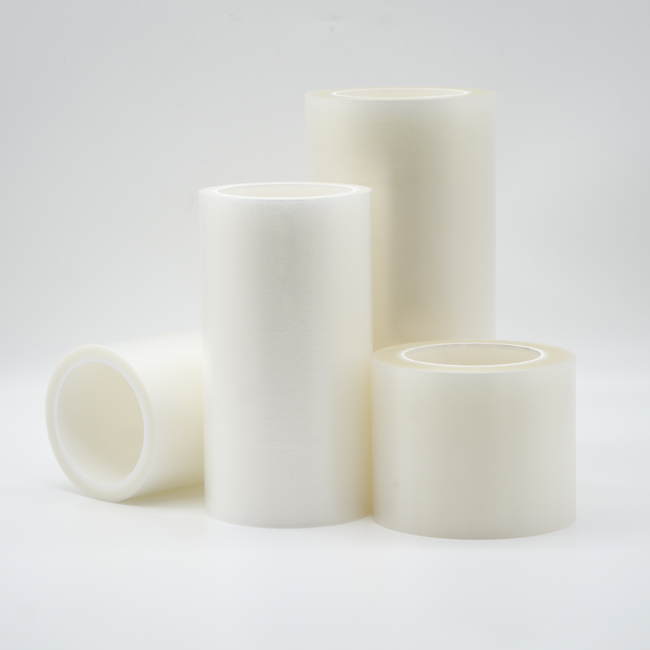

 Embossed film Embossed film is a kind of protective film with many grids on the surface, which has better air permeability and beautiful paste effect, unlike plain film. Made of PE film (Low-Density Polyethylene film) as the base material, one side coating with embossed acrylic adhesive. ◆The glue coated in diamond shapes on film is easy for the air removal after used on the diffuser PET glass plastic surface. ◆Well sticky and easy removal without any residue left. ◆Low tack adhesion from 3 to 50g/25mm, suitable for electronic product surface. ◆Best factory price helps reduce your purchasing cost. ◆Large factory manufacturing, personalized customization with good quality stability. |
Specifications
1.Thickness: 30-80microns;
2.Color: Clear/transparent;
3.Width: 20mm-1300mm; Factory cut, customized size;
4.Length: 200-500 meters per roll;
5.Adhesion: 3-100g/25mm,( 0.1 - 4 oz).
6.Elongation: >200%
7.Shelf Life: 1 Year
Material use
Computer hardware products: computer cases, computer painted panels, plastic injection molding, galvanized sheet stamping, printing and painting parts surface protection;
Protective liquid crystal photo electricity series: LCD display, conductive film switch, touch screen, backlight plate, EL panel, screen monitor cover plastic;
Plastic injection products: ABS, PP injection products, PVC sheet, acrylic board, dashboard, plastic lens protective film.
Instructions
(1) Make sure the surface is dry, free from dust, oil, solvents or other chemicals in case of any residue is caused by our acid adhesive.
(2) Use laminating machines to apply the embossed film would be better. Try to eliminate or minimize film elongation and the formation of air bubbles and folds during lamination.
(3) The best results are obtained at temperature +15°C to 40°C.
(4) Removing this embossed adhesive plastic film is advisable to perform in the temperature range 5°C to 40°C.
(5)The plastic adhesive film is not suitable for extreme thermoforming.
(6) Hualibao customized embossed films can be widely used on many surfaces, please check with our representative before use.
Scenes to be used
1.Embossed film for AB plastic PET sheets glass PMMA die-cut process
2.Plastic panel: Plexiglas panel, PVC light panel, ABS light panel, plastic sheet and plastic shell, all kinds of die cutting process protection.
3.Electrical and electronic materials: light guide plate, electronic screen, instrument surface, automobile instrument, enclosure, air conditioning surface and various household electrical appliance surface protection, titanium metal plate, etc.
Embossed film Embossed film is a kind of protective film with many grids on the surface, which has better air permeability and beautiful paste effect, unlike plain film. Made of PE film (Low-Density Polyethylene film) as the base material, one side coating with embossed acrylic adhesive. ◆The glue coated in diamond shapes on film is easy for the air removal after used on the diffuser PET glass plastic surface. ◆Well sticky and easy removal without any residue left. ◆Low tack adhesion from 3 to 50g/25mm, suitable for electronic product surface. ◆Best factory price helps reduce your purchasing cost. ◆Large factory manufacturing, personalized customization with good quality stability. |
Specifications
1.Thickness: 30-80microns;
2.Color: Clear/transparent;
3.Width: 20mm-1300mm; Factory cut, customized size;
4.Length: 200-500 meters per roll;
5.Adhesion: 3-100g/25mm,( 0.1 - 4 oz).
6.Elongation: >200%
7.Shelf Life: 1 Year
Material use
Computer hardware products: computer cases, computer painted panels, plastic injection molding, galvanized sheet stamping, printing and painting parts surface protection;
Protective liquid crystal photo electricity series: LCD display, conductive film switch, touch screen, backlight plate, EL panel, screen monitor cover plastic;
Plastic injection products: ABS, PP injection products, PVC sheet, acrylic board, dashboard, plastic lens protective film.
Instructions
(1) Make sure the surface is dry, free from dust, oil, solvents or other chemicals in case of any residue is caused by our acid adhesive.
(2) Use laminating machines to apply the embossed film would be better. Try to eliminate or minimize film elongation and the formation of air bubbles and folds during lamination.
(3) The best results are obtained at temperature +15°C to 40°C.
(4) Removing this embossed adhesive plastic film is advisable to perform in the temperature range 5°C to 40°C.
(5)The plastic adhesive film is not suitable for extreme thermoforming.
(6) Hualibao customized embossed films can be widely used on many surfaces, please check with our representative before use.
Scenes to be used
1.Embossed film for AB plastic PET sheets glass PMMA die-cut process
2.Plastic panel: Plexiglas panel, PVC light panel, ABS light panel, plastic sheet and plastic shell, all kinds of die cutting process protection.
3.Electrical and electronic materials: light guide plate, electronic screen, instrument surface, automobile instrument, enclosure, air conditioning surface and various household electrical appliance surface protection, titanium metal plate, etc.
